Hotel L'EssenCiel, France

17 juli 2023

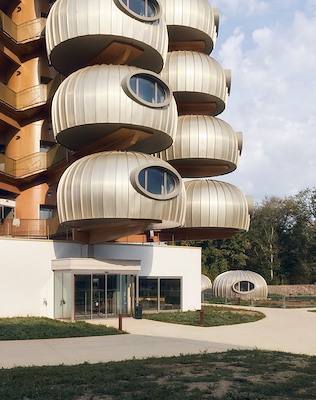

The unique Hotel L'EssenCiel with its bold architecture in the shape of a tree is part of the Domaine du Château des Pères in France. The hotel was designed by Jean-Paul Legendre and Unité Architecture Agency. The project was inspired by the structure of a supporting tree with floating bubbles hanging from its branches. These bubbles were realized with BEMO-MONRO® standing seam aluminium sheets.

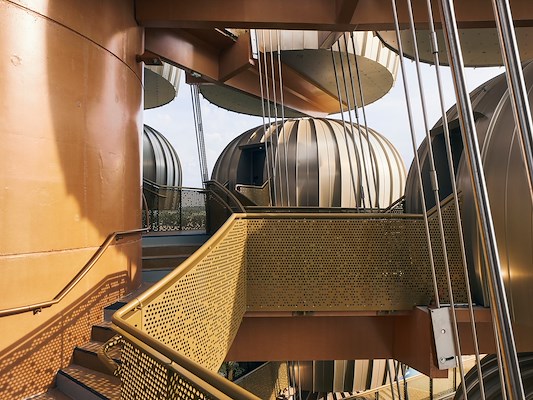

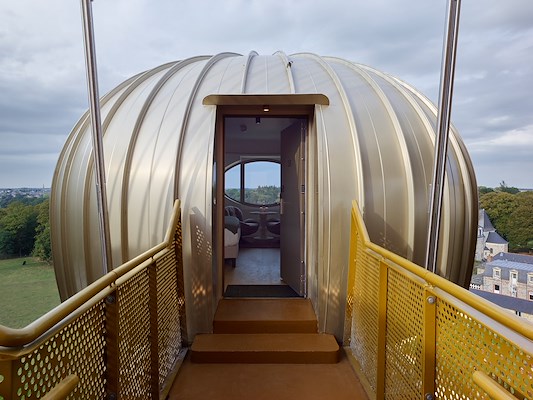

Surrounded by 31 hectares of wooded parkland, guests can stay in the floating aluminium cocoons and enjoy 4* service. The 42 domes of the hotel are connected to the 28m high tower and each one received an aluminium shell. Due to the cocoons' small area of 26m², the geometry of the individual profiles is very extreme. The BEMO-MONRO® standing seam profiles were realized with very small convex radii of less than 2,000mm - both horizontally and vertically in one track.

For this purpose, the coil-coated aluminium coils are first cut to fit exactly, then the sheets are rounded into the shape required for the building. The standing seam profiles were coated in the colour AluNatur Elox Medium Champagne TL. A total area of around 3,280m² was clad with standing seam sheets.

In order to accommodate the curved shape of the hotel's cocoons, the BEMO-MONRO® standing seam sheets were installed on a three-dimensionally adjustable BEMO-DOME substructure. This can be used flexibly and impresses with its good load-bearing capacity, perfect tolerance compensation and simple on-site installation.

The highest safety standards, especially with regard to fire protection, had priority in the design of this extraordinary hotel. The planning phase lasted three years in order to meet all requirements for seismic standards, wind resistance, fire resistance and sound insulation.

Download brochures

Felsprofiel N65-400

Technische specificaties

Felsprofiel N50-429

Technische specificaties

Felsprofiel N50-435oS

Technische specificaties

Felsprofiel N65-305

Technische specificaties

Felsprofiel N65-500

Technische specificaties

Felsprofiel N65-333

Technische specificaties

Felsprofiel N50-529

Technische specificaties

Felsprofiel N50-333

Technische specificaties

Stel jezelf kort voor! Dan weet het betreffende bedrijf wie hun brochure gedownload heeft.

Wil je niet bij elke download jouw gegevens in hoeven voeren?
Klik dan hier om in te loggen. Heb je nog geen account? Maak dan hier een gratis account aan.

Voornaam

Achternaam

E-mailadres

Downloaden

Wanneer je brochures downloadt op Architectenweb.nl worden relevante gegevens van jou – zoals jouw naam en e-mailadres – met het betreffende bedrijf gedeeld. Meer hierover lees je in ons privacybeleid.

Brochure

Locatie

Trefwoorden

staande naad spoor staande naad gevel metalen gevel staande naad gevel design gevel aluminium

BEMO SYSTEMS GmbH

Download brochures (8)Neem contact op

Staat van realisatie Voltooid

Start ontwerpproces 2019

Start bouw 2021

Oplevering 2021

Ingebruikname 2022

Plaats Piré-Chancé

Meewerkende partijen

ArchitectUnité Architecture AgencyInterieurarchitectWunder architectesConstructeurGroupe LegendreFotograafFabrice Fouillet
